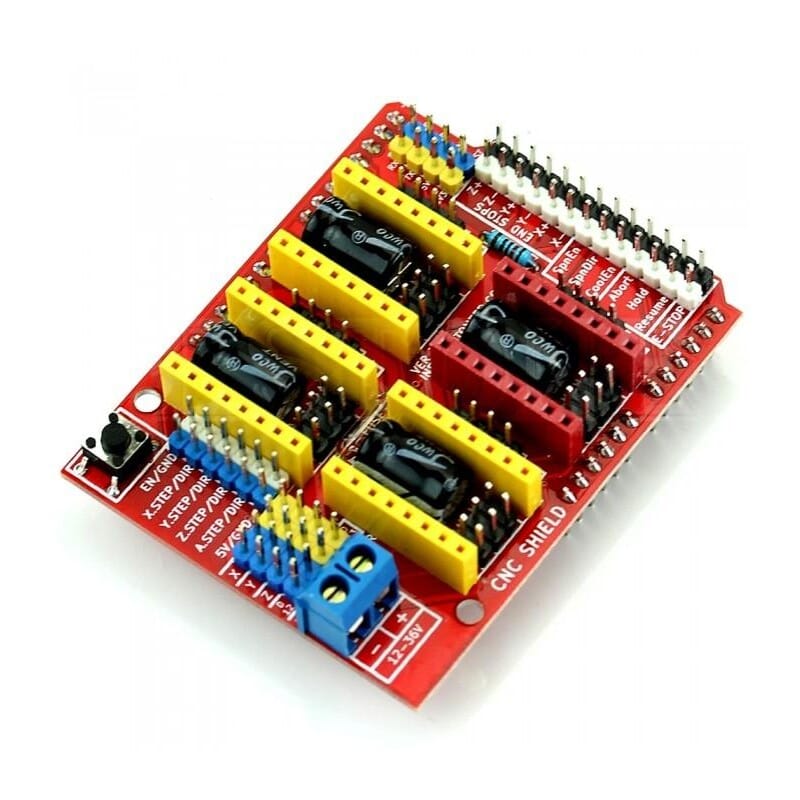

CNC Shield
- Name: CNC/Stepper Motor Shield For Arduino
- Compatible: GRBL 0.9
- Operating Voltage Range: 12-36VDC
- Motor Voltage: 8 V to 35 V
- Logic Circuits Voltage: 3 V to 5.5 V
- Current: 2 A (MAX)
- Five Step Resolutions: Full, 1/2, 1/4, 1/8 And 1/16
- Enlarged board to add a 4thAxis that can clone the X,Y or Z axis. With a 4th option to use pin D12-13 tocontrol it.
- Added a breakout header for allthe Axis’s
- Added a communication headerfor UART(Serail) and I2C
- Added the a connector for anoptional fuse.(Fuse not supplies as it needs to be selected for the currentthat will be used.)
- Capacitors are mountedhorizontally giving more clearance between them and the stepper drivers. Goodfor ventilation.
- Added a pull-up resistor on theaxis enable pins. This prevents the pin from being in a floating state
- Added2 mounting holes
