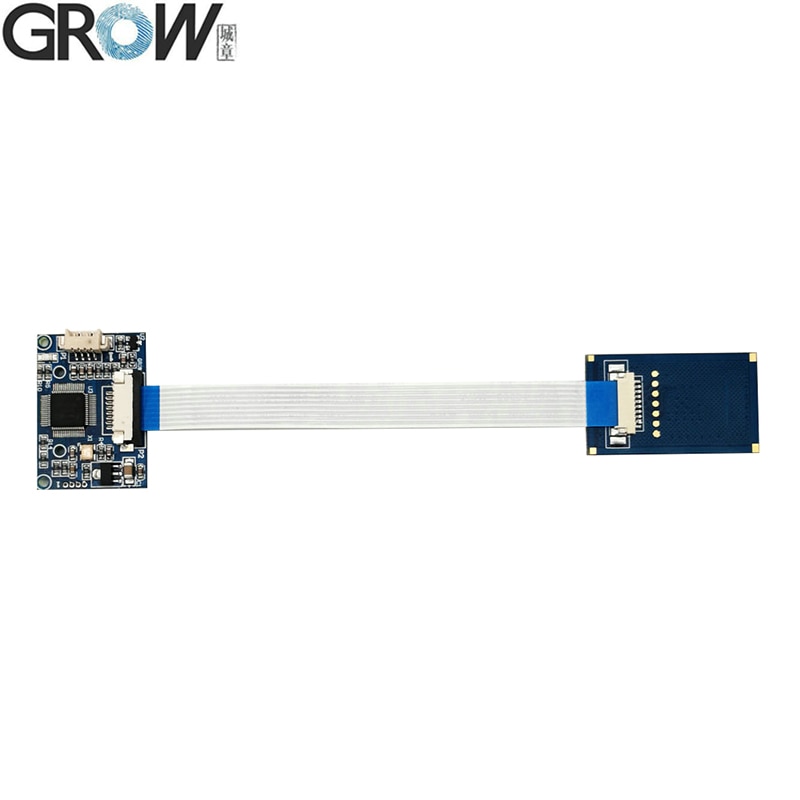

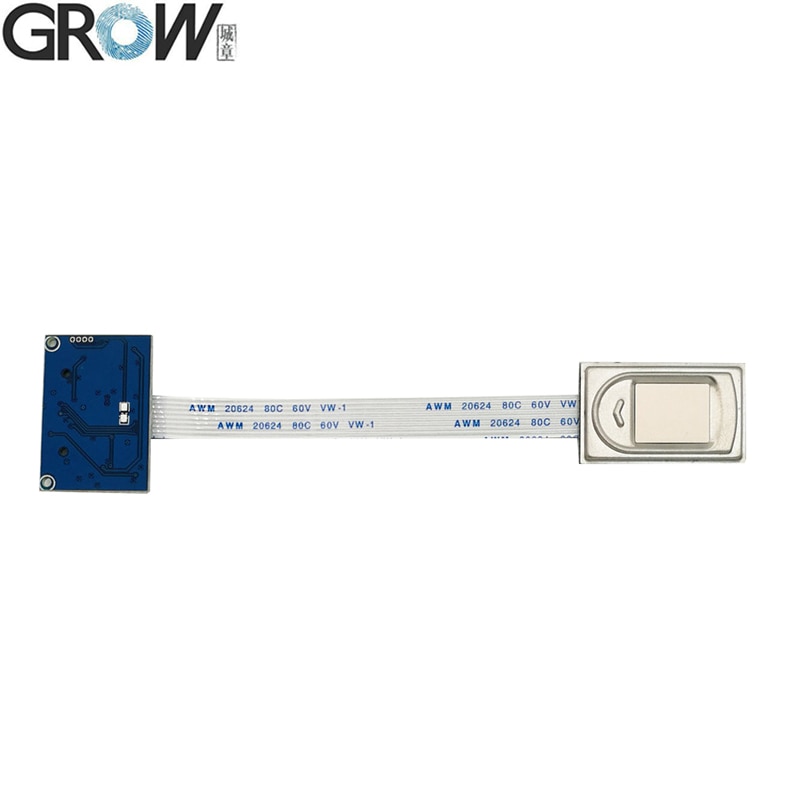

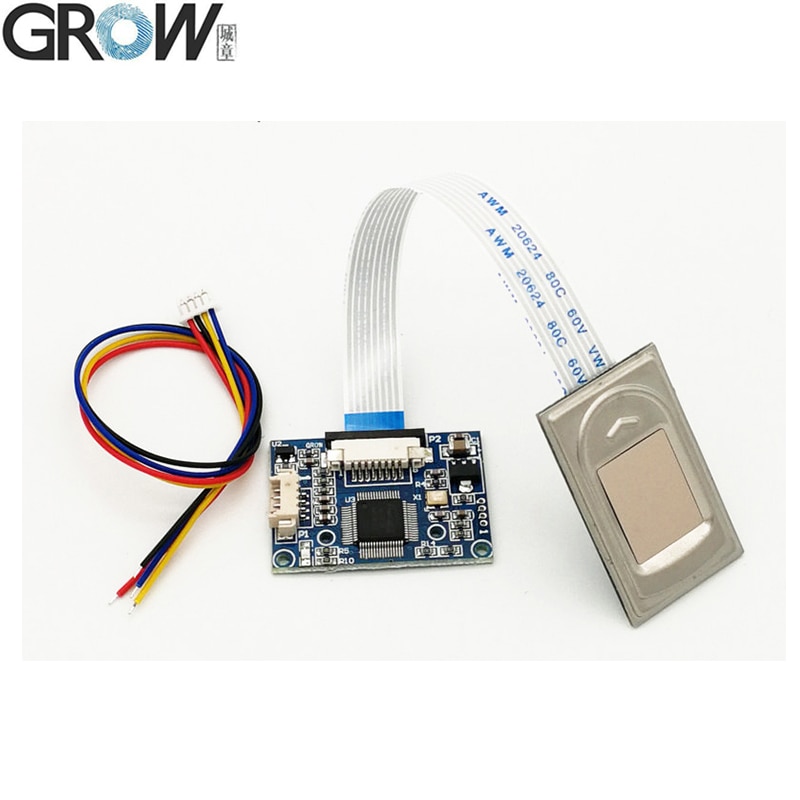

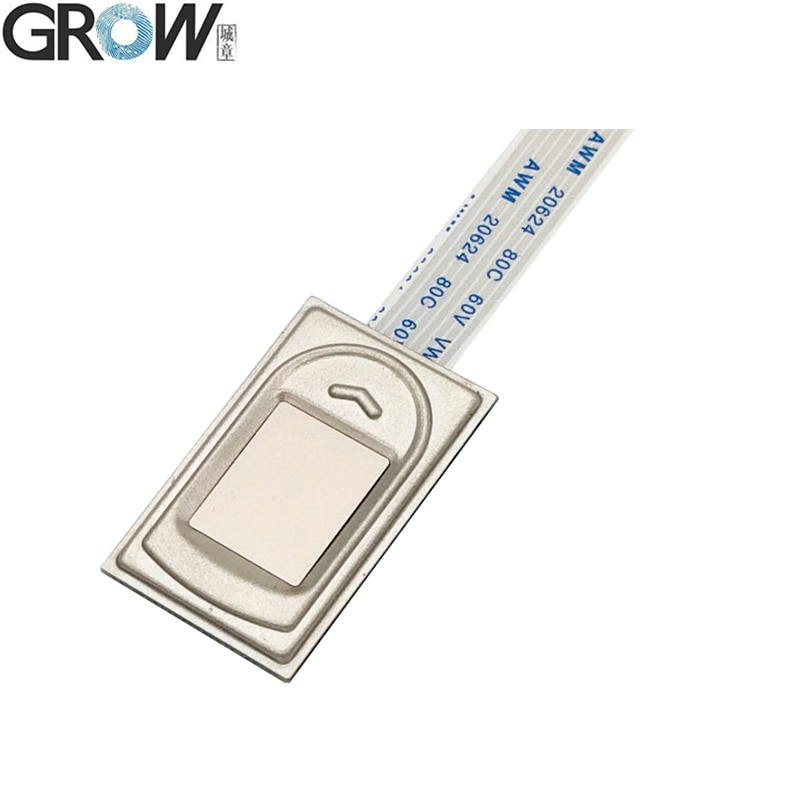

Fingerprint Sensor Module


·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

 3,000.00

Compare

Fingerprint Sensor Module Specification

Model
R304
Type
Capacitive Fingerprint Module
Interface
USB,UART(RS232 TTL)
Resolution
508 DPI
Voltage
DC 4.2-6V
Fingerprint Capacity
1000
Sensing array
192*256 pixel

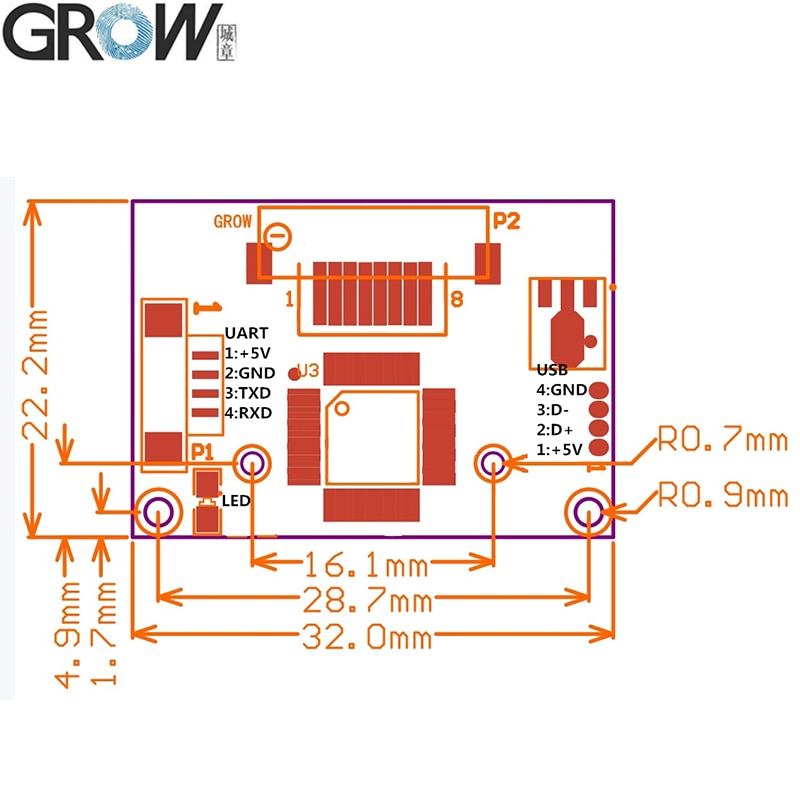

Fingerprint module size
33.4*20.4*1.0(mm)
Effective collection area
11 * 15 (mm)
Scanning Speed
< 0.2 second
Verification Speed
< 0.3 second
Matching Method
1:1; 1:N
FRR
≤0.1%
FAR
≤0.0001%
Work environment
-20C —50C
Work Humidity
10-85%
Anti-static capacity
15KV
Abrasive resistance intensity
1 million times
Communications baud rate (UART):
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)
color

as image
