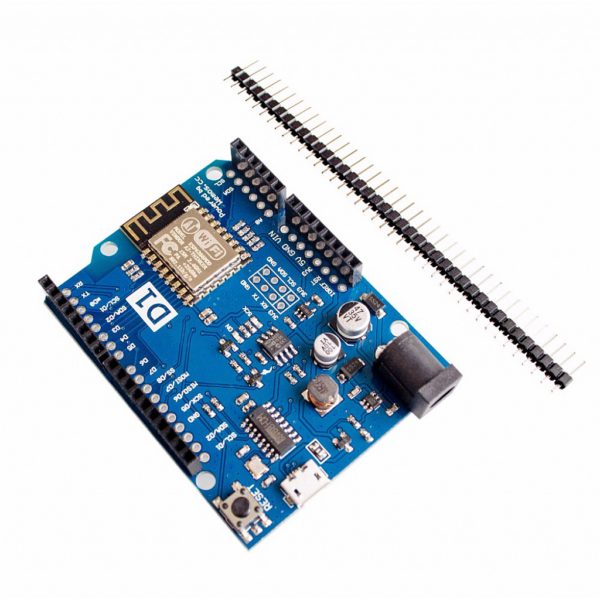

WeMos D1 R2 WiFi Uno Development Board


 860.00  1,060.00

WeMos- D1 R2 WiFi ESP8266 Development Board is programmable via Arduino IDE. This is an ESP8266 based WiFi enabled microprocessor unit on a Arduino-UNO footprint. That means the board looks and works (in most cases) like an UNO. Several shields, sensors and output devices that are manufactured for the Arduino platform will work on the WeMos-D1R2 with the added advantage of builtin WiFi.

Features of Wemos D1 R2 Wifi -Esp8266 Development Board:

  • The D1 R2 is a mini wifi board based on ESP-8266EX
  • 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
  • 1 analog input(3.3V max input)
  • A Micro USB connection
  • A power jack, 9-24V power input
  • Compatible with Arduino
  • Compatible with nodemcu



Pin Function ESP-8266 Pin
TX TXD TXD
RX RXD RXD
A0 Analog input, max 3.3V input A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO,Pull-up GPIO0
D4 IO,pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO,pull-down, SS GPIO15
G Gound GND
5V 5V
3V3 3.3V 3.3V
RST Reset RST

*All IO have interrupt/pwm/I2C/one-wire supported(except D0)

Programming:

  • The D1 R2 has a micro USB for auto programming.
  • Also you can programming it using OTA
  • Note: All IO is work at 3.3V.

Package included:

  • 1 x WeMos D1 R2 WiFi ESP8266 Development Board Compatible Arduino
Weight 2.64 g
Microcontroller ESP-8266EX
Operating Voltage 3.3V
Digital I/O Pins 11
Analog Input Pins 1
Clock Speed 80MHz/160MHz
FLash 4M bytes
Length 68.6mm
Width 53.4mm
Weight 25g
